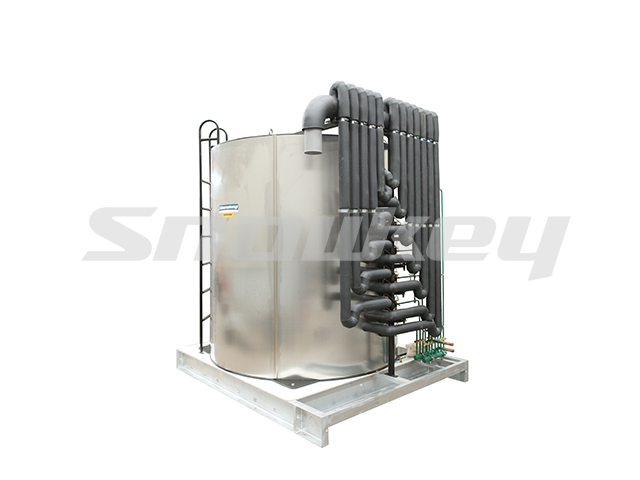

Flake Ice Evaporator F600S (60T/D)
NO.F600S
Flake Ice Evaporator F600S (60T/D)
NO.F600S
Product Description
Technical Parameters
Flake Ice Evaporator Technical Parameters Sheet | ||||||||||
No. | Model | Ice Maker Shape | Evaporator Specifications | Reducer | Water Pump | Circulating Water Tank | Overall Performance | |||
OD ? * H mm | Ice Outlet ? mm | Power kW | Power kW | Feed Water Inlet | Drain Outlet | Production Capacity | Weight | Cooling Load | ||
Rc PVC | PVC pipe | t/d | kg | kW | ||||||
1 | F050S | 478*599 | 375 | 0.18 | 0.014 | 1×1/2" | 1/2" | 0.5 | 96 | 2.75 |
2 | F075S | 478*644 | 375 | 0.18 | 0.014 | 1×1/2" | 1/2" | 0.75 | 104 | 4.125 |
3 | F10S | 478*785 | 375 | 0.18 | 0.014 | 1×1/2" | 1/2" | 1 | 108 | 5.5 |
4 | F12S | 478*785 | 375 | 0.18 | 0.014 | 1×1/2" | 1/2" | 1.2 | 108 | 6.6 |
5 | F16S | 648*894 | 510 | 0.37 | 0.025 | 1×1/2" | 1/2" | 1.6 | 208 | 8.8 |
6 | F20S | 648*969 | 510 | 0.37 | 0.025 | 1×1/2" | 1/2" | 2 | 220 | 11 |
7 | F25S | 648*1029 | 510 | 0.37 | 0.025 | 1×1/2" | 1/2" | 2.5 | 230 | 13.75 |
8 | F40S(A)① | 648*1084 | 510 | 0.37 | 0.025 | 1×1/2" | 1/2" | 4 | 240 | 22 |
9 | F60S(A) | 920*1331 | 710 | 0.37 | 0.125 | 1×1/2" | 3/4" | 6 | 550 | 33 |
10 | F80S(A) | 1160*1586 | 920 | 0.55 | 0.25 | 1×3/4" | 3/4" | 8 | 830 | 44 |
11 | F100S(A) | 1160*1846 | 920 | 0.75 | 0.25 | 1×3/4" | 3/4" | 10 | 980 | 55 |
12 | F150S(A) | 1462*2080 | 1277 | 0.75 | 0.4 | 2×3/4" | 1-1/4" | 15 | 1690 | 82.5 |
13 | F200S(A) | 1600*2744 | 1420 | 1.1 | 0.4 | 2×3/4" | 1-1/4" | 20 | 2634 | 110 |
14 | F250S(A) | 1990*2887 | 1790 | 1.1 | 0.75 | 3×3/4" | 1-1/4" | 25 | 3588 | 137.5 |
15 | F300S(A) | 1990*3027 | 1790 | 1.1 | 0.75 | 3×3/4" | 1-1/4" | 30 | 3980 | 165 |
16 | F350S(A) | 2337*3071 | 2150 | 1.5 | 0.75 | 3×3/4" | 1-1/4" | 35 | 4500 | 192.5 |
17 | F400S(A) | 2337*3371 | 2150 | 1.5 | 0.75 | 3×3/4" | 1-1/4" | 40 | 5400 | 220 |
18 | F600S(A) | 2337*3787 | 2150 | 1.5 | 0.75 | 3×3/4" | 1-1/4" | 60 | 6700 | 330 |
①Ammonia units postfixed with A,such as F350SA, indicated daily production 35Tons flake ice of ammonia evaporator unit, the same below.
Attention:
The main feeding pipe of ammonia should be basing on the specifications to set solenoid valve, suction pipe and drainage pipe also be set service valve.
