RefComp
134- I Series compressors have a totally new design, use variable
frequency converter to control capacity, and are exclusively for R134a.
Themain characteristics include the integration of variable frequency
converter and the compressor, the converter cooled by therefrigerant
liquid, compact insizes and easy and reliable in application. Compared
to other models exclusively designed for R134a, this series of
compressors have higher actual efficiencyand higher applicability.

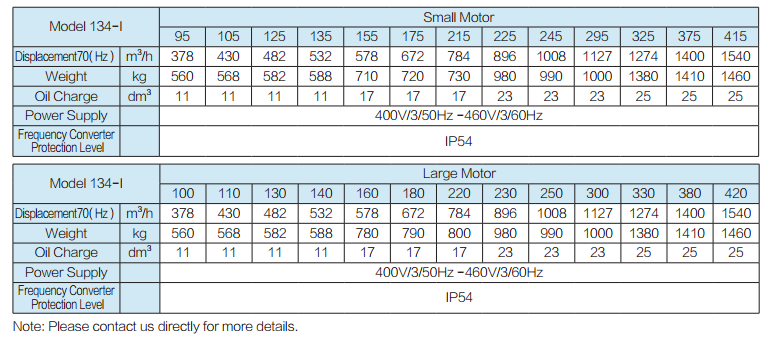

Frequency ranges 30Hz- 70Hz, and 26 models are included.Proprietary
automatic adjustment technology applied in the compressorscan ensure the
compressors to achieve the optimized efficiency in the wide and changed
operating conditions, rendering the high overall efficiency .
Product features
● Variable frequency screw compressor specifically designed for R134a.
●Filter,
cut- off valve, temperature sensor and frequency converterare all
integrated into one, resulting in the compact structure.
●Variable frequency motor: high power factor, low current, andlow copper loss on the rotor.
●Cooling
capacity is adjusted according to full or partial load.variable
frequency converter is applied to control the capacity.The max.
Efficiency is guaranteed in various operating conditions.

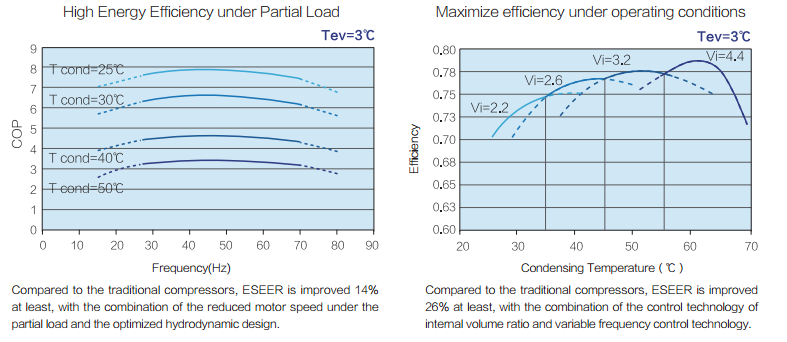

●Compared
to the traditional compressors, ESEER is improved 26%at least, with the
combination of new Vi adjustment technology andvariable frequency
conversion technology.
Application scope
